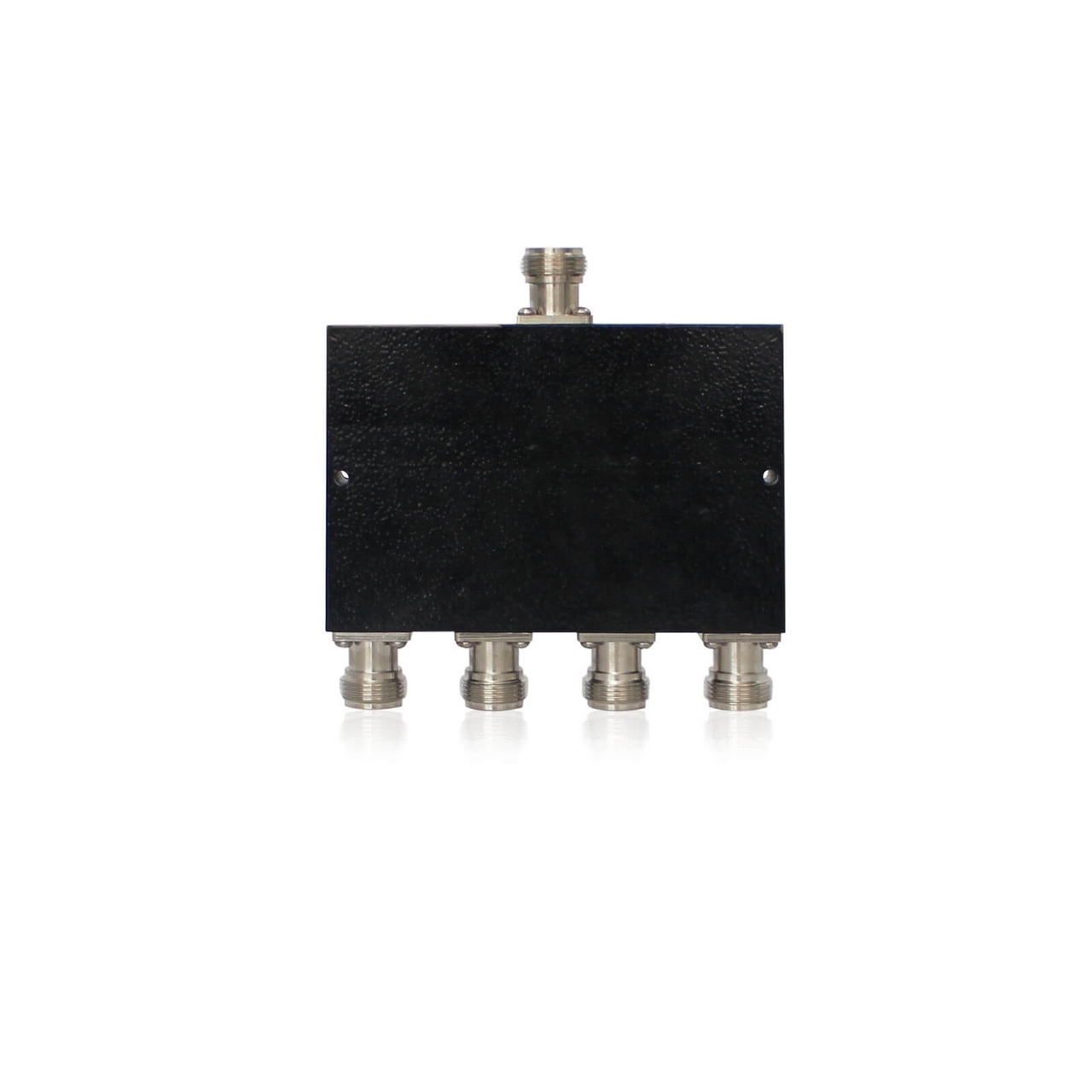

4-Way Wilkinson Splitter
This four-way wilkinson splitter allows 4 antennas to be used with a single mobile phone signal booster. Each indoor antenna has a loss of ⩽0.5 dB gain.
- 4-way splitter
- Easy to install
- Carrier grade design
Description
ADD MORE ANTENNAS
This four-way Wilkinson splitter allows 4 antennas to be used with a single booster for coverage expansion. Mind that each indoor antenna has a loss of ⩽0.5 dB gain.The splitter supports 2G, 3G and 4G at 698 to 2700 MHz frequency range. The accessory is suitable for all HiBoost mobile phone signal boosters.
SPLITTER KEY FEATURES
- Full band 698-2700 MHz
- Signal loss ⩽0.5 dB
- Supports 4 antennas
Recommended for high-power PRO Series HiBoost repeaaters
| Frequency Range | 698-2700 MHz |
|---|---|
| Insertion Loss | 0.5 dB |
| Input Impedance | 50Ω |
| VSWR | ≤ 1.4 |
| Maximum Power | 50 W |
| Connector Type | N-Female |
| Weight | 0.38 KG/0.84 lbs |
| Color | Black |
